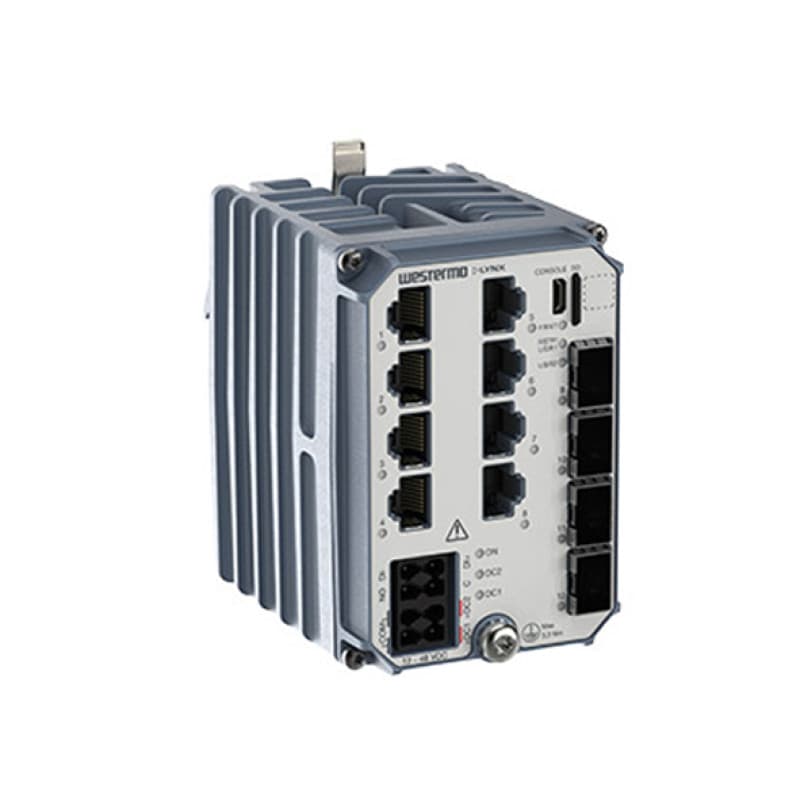

Westermo Lynx 5512-F4G-T8G-LV Managed Ethernet Switch
Layer 2 functionality switching 8 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ-45) 4 x 100/1000 Mbit/s SFP Ports IEEE 1588v2 Precision Time Protocol (PTP) Ultra-robust IP40 metal housing 12 to 48 VDC power input (with Galvanic isolation) -40 to +70 °C operating temperature range
Tags & Features
The Lynx 5500 series is the most compact high-performance industrial Ethernet switch series on the market. It has been developed with the needs of current and future industrial data networks in mind. Combining outstanding performance, durability, and reliability, these switches are ideal for handling big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications. Integrating hardware, software, and network design support tools, this next-generation switch platform offers advanced capabilities and the lowest total cost of ownership and will create the most reliable and resilient networks. The switch is engineered to maintain uninterrupted data communication, even in exceptionally harsh environments. Tested and certified to withstand extreme temperatures, vibrations, and shocks, these switches only use industrial-grade components, which contributes towards a market-leading mean time between failure (MTBF), maximized service life, and reduced operational and life cycle costs. By providing full gigabit speed on all 12 ports, four flexible SFP ports, and layer 2 and layer 3 functionality, a broad range of applications is possible. Powered by the next generation's WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features. The Lynx 5512 features an intuitive set-up and configuration, removing the need for specialized IT support or training and enabling easy and cost-efficient installation. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available. The switches are also prepared for routing acceleration, extended cybersecurity, and time synchronization of IEEE 1588v2 applications, making them an ideal solution to meet future security and bandwidth requirements.
Specifications
General
- MTBF:
- Telcordia: 955,000 hours; MIL-HBDK-217F: 506,000 hours
- Fan / Fanless:
- Fanless
Interface
- Other ports:
- : 1 x Console Port (Micro USB), 1 x Micro SD (Secure Digital 2.0), 1 x Digital I/O (4-pin detachable push-in terminal connector)
- Number of ports:
- 12 Ports
- 10/100/1000Mb RJ45 (Gigabit) Ports:
- : 8 Ports
- 1000Mb SFP Fiber optic (Gigabit) Ports:
- : 4 Ports
LED Indicators
Package Checklist
Power Requirements
- Input Current:
- 1.7 A at 12 VDC, 0.67 A at 24 VDC, 0.35 A at 48 VDC
- Input Voltage:
- 12 to 48 VDC (with Galvanic isolation to all ports)
- Operating Voltage:
- 9.6 to 60 VDC
- Power Consumption:
- -
Switch specifications
- Switch type:
- Managed
- Most forwarding speed:
- -
- Network working layers:
- Layer 2
Standards and protocols
- Protocols and work standards:
- IEEE 1588v2 Precision Time Protocol (PTP)
- Protocols and management standards:
- Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memoryb., Configuration and Deployment using external memoryb., Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring
Physical Characteristics
- Weight:
- 690 gr
- Housing:
- Full metal
- Dimensions:
- 70 x 100 x 100 mm (2.7 x 3.9 x 3.9 inches)
- Installation:
- -
- Operation Humidity:
- 5-95% relative humidity
- Storage Temperature:
- -50 to +85°C (-58 to +185°F)
- Operating Temperature:
- -40 to +70°C (-40 to +158°F)
- Standards and Certifications:
- Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F; EMC: EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Safety EN/IEC/UL 61010-1, -2-201, Safety: requirements for electrical equipment for measurement, control, and laboratory use; Marine: DNV rules for classification - Ships and offshore units; Environmental: NEMA TS 2, Traffic Controller Assemblies with NTCIP Requirements AREMA
