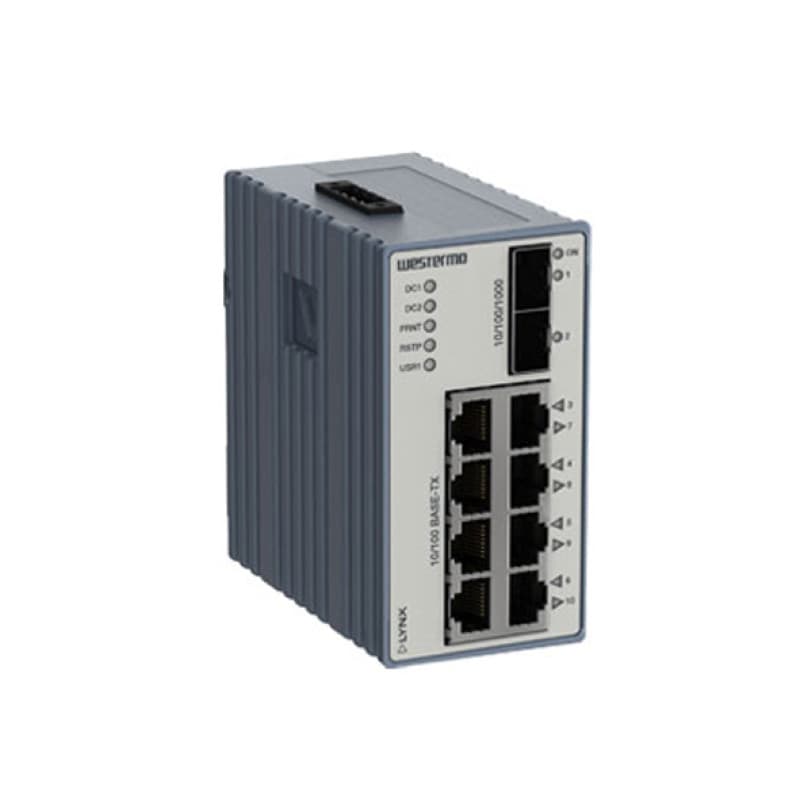

Westermo L210-F2G Managed Ethernet Switch
Layer 3 functionality switching and routing 8 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector) 2 x 100/1000 Mbit/s SFP Ports, Ethernet FX (LC) or TX SFP (RJ-45) IP40-ratedRobust metalhousing DIN rail mount installation 24 to 48 VDC Redundant dual power inputs -40 to +70°C operating temperature range
Tags & Features
The Lynx 210 is a layer 3 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx has 8 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers. The Lynx is designed for simple use in industrial applications, from the robust DIN rail clip solution to the configurable fault contact and the industrial-level dual power inputs. Only industrial-grade components are used, which gives the Lynx an MTBF of 630,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications. WeOS has been developed by Westermo to allow us to offer cross-platform and future-proof solutions. WeOS can deliver unique IP security functionality for this class of product, for instance, a Multiport DMZ can be constructed by utilizing the internal port-based firewall function. Remote secure access to a network can be provided using encrypted VPNs.
Specifications
General
- MTBF:
- MIL-HDBK-217-F: 630,000 hours
- Fan / Fanless:
- Fanless
Interface
- Other ports:
- : 1 x Digital input channel and 1 x Digital output channel, 1 x Console Port
- Number of ports:
- 10 Ports
- 10/100Mb RJ45 (Megabit) Ports:
- : 8 Ports (or 10 Mbit/s)
- 1000Mb SFP Fiber optic (Gigabit) Ports:
- : 2 Ports, Ethernet FX (LC) or TX SFP (RJ-45)
LED Indicators
- LED Per Port:
- : For 8 RJ-45 ports
Package Checklist
Power Requirements
- Input Current:
- 24 VDC: 240 mA; 48 VDC: 120 mA
- Input Voltage:
- 24 to 48 VDC (with Galvanic isolation to all ports)
- Operating Voltage:
- 19 to 60 VDC
- Power Consumption:
- -
Switch specifications
- Switch type:
- Managed
- Most forwarding speed:
- -
- Network working layers:
- Layer 3
Standards and protocols
- Protocols and work standards:
- -
- Protocols and management standards:
- WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, (SSHv2 and Telnet), Local and central user authentication (RADIUS and TACACS+), SNMPv1/v2c/v3. Secure Copy (SCP), USB configuration and backupb., BOOTP client, flexible alarm/event handling system, Syslog (log files on RAM/USB and remote syslog server), Digital I/O, Persistent Port Monitoring, NTPv4 Client/Server, DHCP client (including options 60 and 61), DHCP server (including options 1, 3, 6, 7, 12, 15, 42, 61, 66, 67, 82, 121 and 249), DHCP relay agent (including options 54 and 82), DDNS
Physical Characteristics
- Weight:
- 0.7Kg
- Housing:
- Metal
- Dimensions:
- 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 inches)
- Installation:
- Din-rail mounting
- Operation Humidity:
- 5-95% relative humidity
- Storage Temperature:
- -50 to +85°C (-58 to +185°F)
- Operating Temperature:
- -40 to +70°C (-40 to +158°F)
- Standards and Certifications:
- MIL-HDBK-217-F; IEC 62443; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-3, Emission residential environments, EN 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway and telecommunications apparatus; Safety UL 62368-1, Safety: Communication Technology; Marine: DNV GL rules for classification - Ships and offshore units; Approvals EMI: FCC Part 15.105 class A; Shock and Vibration
