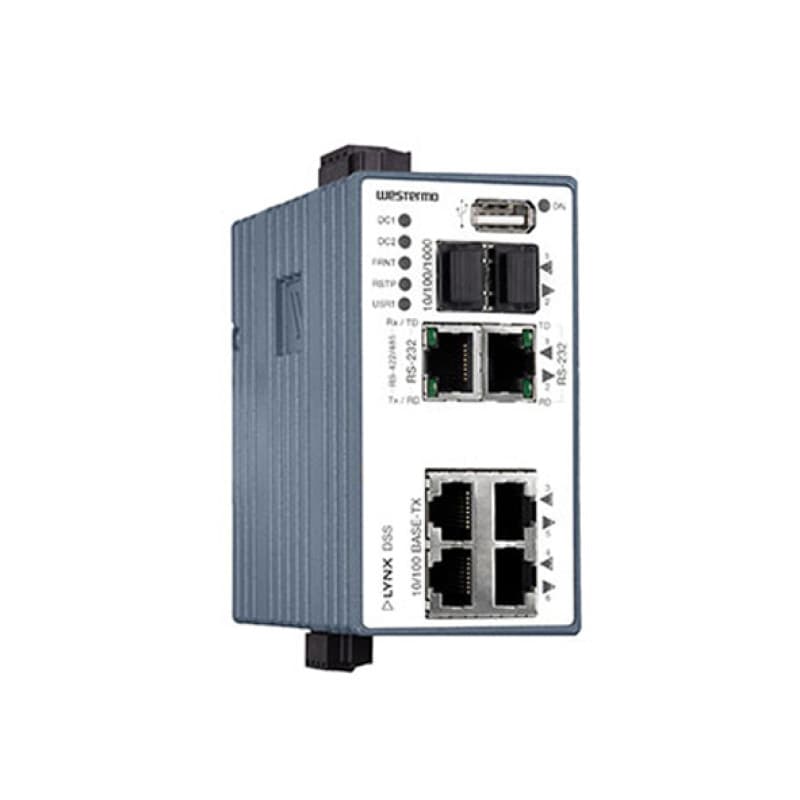

Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
Layer 2 functionality switching 4 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector) 2 x 100/1000 Mbit/s SFP Ports, Ethernet FX (LC) or TX SFP (RJ-45) 1 x 50 bit/s – 115.2 kbit/s RS-232 Port (RJ-45 connector) 1 x 50 bit/s – 2 Mbit/s RS-232/422/485 Port (RJ-45 connector) IP40-ratedRobust metalhousing DIN rail mount installation 12 to 24 VDC Redundant dual power inputs -40 to +70°C operating temperature range
Tags & Features
The Lynx series consists of layer 2 or layer 3 industrial Ethernet switches, powered by WeOS, the Westermo network operating system. The Lynx switches are the most compact switches or device servers on the market, available with up to 10 Ethernet ports whereof two are 100 Mbit or Gbit SFP transceivers. The Lynx series is designed for simple use in industrial applications, from the robust DIN rail clip solution to the configurable fault contact and the industrial level of dual power inputs. Only industrial grade components are used which gives the Lynx series an MTBF of up to 677,000 hours and ensures a long service life. A wide operating temperature range of -40 to +70/74°C (-40 to +158/165°F) can be achieved with no moving parts or cooling holes in the case. The Lynx series has been tested both by Westermo and external test institutes to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications. WeOS has been developed by Westermo to offer cross platform and future proof solutions. WeOS delivers unique functionality in legacy IP solutions, supporting Modbus Gateway, virtual COM, modem replacement or several options in dual TCP applications.
Specifications
General
- MTBF:
- MIL-HDBK-217-F: 517,000 hours
- Fan / Fanless:
- Fanless
Interface
- Other ports:
- : 1 x 50 bit/s – 115.2 kbit/s RS-232 Port (RJ-45 connector), 1 x 50 bit/s – 2 Mbit/s RS-232/422/485 Port (RJ-45 connector), 1 x USB Port, 1 x Digital input channel and 1 x Digital output channel, 1 x Console Port
- Number of ports:
- 8 Ports
- 10/100Mb RJ45 (Megabit) Ports:
- : 4 Ports (or 10 Mbit/s)
- 1000Mb SFP Fiber optic (Gigabit) Ports:
- : 2 Ports, Ethernet FX (LC) or TX SFP (RJ-45)
LED Indicators
Package Checklist
Power Requirements
- Input Current:
- 12 VDC: 470 mA; 24 VDC: 230 mA
- Input Voltage:
- 12 to 24 VDC
- Operating Voltage:
- 9.8 to 36 VDC
- Power Consumption:
- -
Switch specifications
- Switch type:
- Managed
- Most forwarding speed:
- -
- Network working layers:
- Layer 2
Standards and protocols
- Protocols and work standards:
- -
- Protocols and management standards:
- WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, (SSHv2 and Telnet), Local and central user authentication (RADIUS and TACACS+), SNMPv1/v2c/v3. Secure Copy (SCP), USB configuration and backupb., BOOTP client, flexible alarm/event handling system, Syslog (log files on RAM/USB and remote syslog server), Digital I/O, Persistent Port Monitoring, NTPv4 Client/Server, DHCP client (including options 60 and 61), DHCP server (including options 1, 3, 6, 7, 12, 15, 42, 61, 66, 67, 82, 121 and 249), DHCP relay agent (including options 54 and 82), DDNS
Physical Characteristics
- Weight:
- 0.7 kg
- Housing:
- Metal
- Dimensions:
- 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 inches)
- Installation:
- DIN-rail mounting
- Operation Humidity:
- 5-95% relative humidity
- Storage Temperature:
- -50 to +85°C (-58 to +185°F)
- Operating Temperature:
- -40 to +70°C (-40 to +158°F)
- Standards and Certifications:
- MIL-HDBK-217-F; IEC 62443; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway and telecommunications apparatus; Safety UL 62368-1, Safety: Communication Technology; Environmental: AREMA; Approvals EMI: FCC Part 15.105 class B; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64
