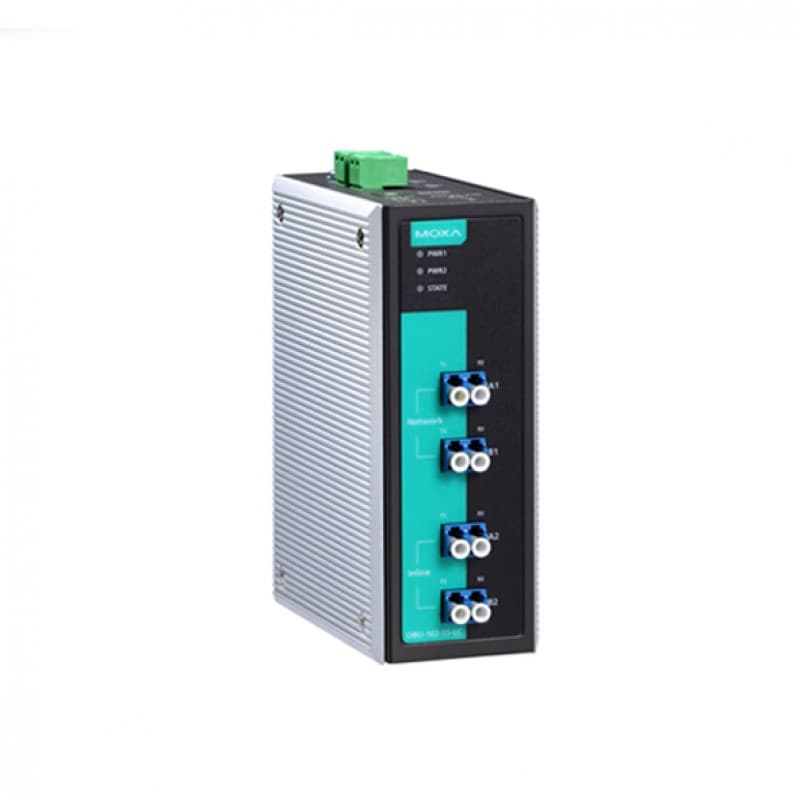

MOXA OBU-102-SS-LC Optical Fiber Bypass Unit
4 x Single-Mode Fiber LC Female Connector Redundant dual 12/24/48 VDC power inputs IP30-rated metal body design DIN-rail mounting ability Ultra-low power consumption 0.72 W -20 to 70°C operating temperature
Tags & Features
Moxa’s OBU-102 fiber-optic bypass units add bypass relay functionality to any network node. In linear network topologies, a single power outage or node failure can disrupt communications to all downstream devices, potentially taking an entire network segment offline. With relay bypass enabled, the failed node is automatically bypassed, allowing the rest of the network to continue operating without interruption. Bypass Relay Functionality The OBU-102 Series is installed between a network node and the network infrastructure to provide bypass relay functionality for switches that do not natively support it. During normal operation, the OBU-102 functions as a gateway, forwarding traffic between the network and the connected switch. In the event of a power loss, the OBU-102 automatically bypasses the unpowered switch and transparently forwards network traffic to the next node in the chain.
Specifications
Interface
- Ports:
- 4 x Single-Mode Fiber, LC Female Connector
Power Parameters
- Input Current:
- 0.1 A @ 48 VDC
- Input Voltage:
- 12/24/48 VDC, Redundant dual inputs
- Reverse Polarity Protection:
- Supported
Bypass Properties
- Insertion Loss:
- 1.6 dB (max.)
- Optical Switching Time:
- 10 ms (max.)
Physical Characteristics
- Weight:
- 700 g
- Housing:
- Metal
- Dimensions:
- 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
- Installation:
- DIN-rail mounting, Wall mounting (with optional kit)
- Storage Temperature:
- -40 to 85°C (-40 to 185°F)
- Operating Temperature:
- -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity:
- 5 to 95% (non-condensing)
- Standards and Certifications:
- Safety: UL 508; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30
Rotary Switch Configuration
- Boot Delay Interval:
- 10 steps, each step represents a 5 second delay
