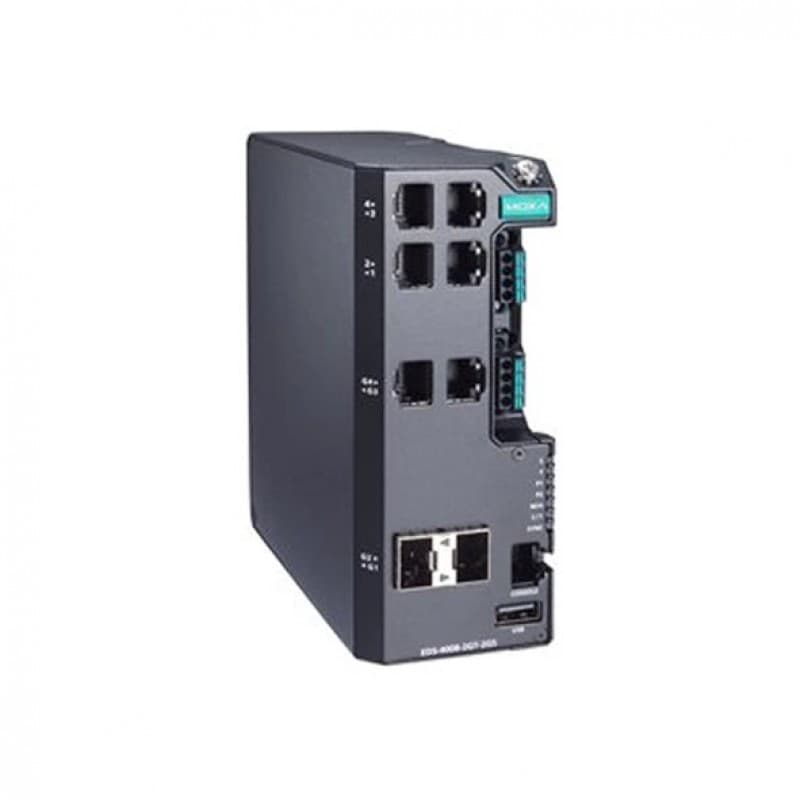

MOXA EDS-4008-2GT-2GS-HV Managed Ethernet Switch
4 x 10/100BaseT(X) Ports (RJ45 connector) 2 x 10/100/1000BaseT(X) Ports (RJ45 connector) 2x 100/1000BaseSFP Slots 110/220 VDC/VAC Single power input Pre-installed PWR-105-HV-I Power Module DIN-rail and wall mounting IP40-rated Metal body design -10 to 60°C operating temperature
Tags & Features
The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices. The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Specifications
General
- MTBF:
- 505,936 hours
- Fan / Fanless:
- Fanless
Interface
- Other ports:
- : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
- Number of ports:
- 8 Ports
- 10/100Mb RJ45 (Megabit) Ports:
- : 4 Ports
- 10/100/1000Mb RJ45 (Gigabit) Ports:
- : 2 Ports
- 1000Mb SFP Fiber optic (Gigabit) Ports:
- : 2 ports
LED Indicators
Package Checklist
Power Requirements
- Input Current:
- 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
- Input Voltage:
- 110/220 VDC/VAC
- Operating Voltage:
- 88 to 300 VDC, 85 to 264 VAC
- Power Consumption:
- 11.17 W
Switch specifications
- Switch type:
- Managed
- Most forwarding speed:
- -
- Network working layers:
- Layer 2
Standards and protocols
- Protocols and work standards:
- EtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
- Protocols and management standards:
- IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Physical Characteristics
- Weight:
- 795 g (1.75 lb)
- Housing:
- Metal
- Dimensions:
- 55 x 140 x 122.5 mm (2.2 x 5.51 x 4.82 in)
- Installation:
- DIN-rail mounting, Wall mounting (with optional kit)
- Operation Humidity:
- 5% to %95 non-condensing
- Storage Temperature:
- -40 to 85°C (-40 to 185°F)
- Operating Temperature:
- -10 to 60°C (14 to 140°F)
- Standards and Certifications:
- Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; IP40; Telcordia SR332
Features and capabilities
- Backup:
- : ABC-02 and ABC-03
