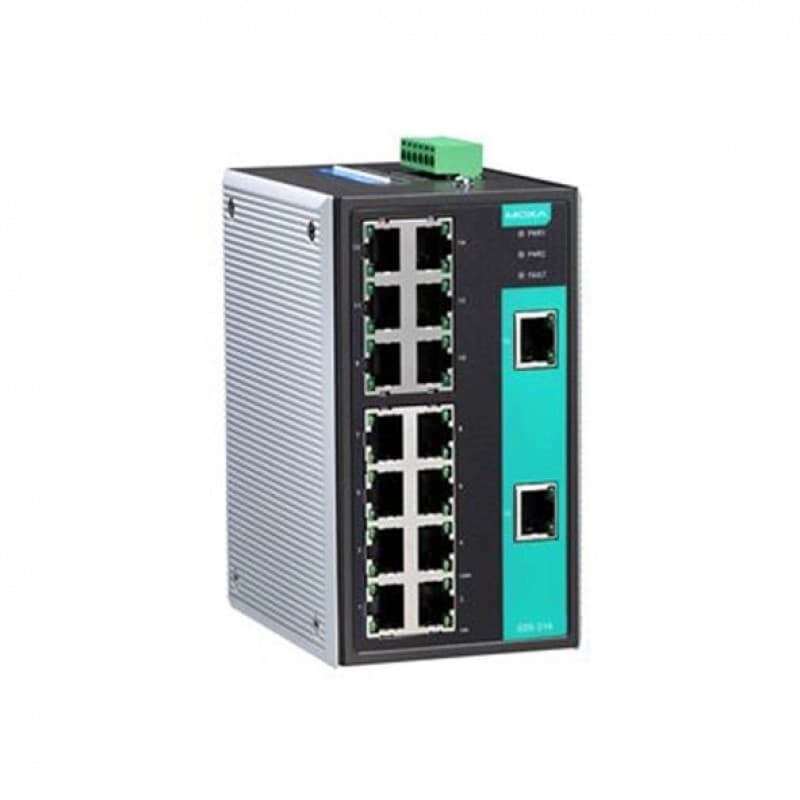

MOXA EDS-316-T Unmanaged Ethernet Switches
16 x 10/100Mbps T(x) ports (RJ45 connector) DIN-rail and Wall mounting IP30-rated metal housing 12 to 48 VDC Redundant dual power inputs -40 to 75°C operating temperature
Tags & Features
The EDS-316 Ethernet switches provide an economical and reliable solution for industrial Ethernet connectivity. These 16-port switches feature a built-in relay warning function that alerts network engineers to power failures or port disruptions, helping ensure network reliability. Designed for harsh industrial environments, the EDS-316 Series is suitable for hazardous locations defined by Class 1 Division 2 and ATEX Zone 2 standards. The switches comply with FCC, UL, and CE certifications and are available with either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. To ensure long-term reliability in industrial automation and control applications, all models undergo a 100% burn-in test. The EDS-316 switches support DIN-rail mounting and distribution box installation, allowing for flexible and easy deployment.
Specifications
General
- MTBF:
- 2,226,219 hrs
- Fan / Fanless:
- Fanless
Interface
- Other ports:
- : 1 x Alarm Contact Channel
- Number of ports:
- 16 Ports
- 10/100Mb RJ45 (Megabit) Ports:
- : 16 Ports
LED Indicators
Package Checklist
Power Requirements
- Input Current:
- 0.34 A @ 24 VDC
- Input Voltage:
- 12/24/48 VDC
- Operating Voltage:
- 9.6 to 60 VDC
- Power Consumption:
- -
Switch specifications
- Switch type:
- UnManaged
- Most forwarding speed:
- -
- Network working layers:
- Layer 1
Standards and protocols
- Protocols and work standards:
- -
- Protocols and management standards:
- -
Physical Characteristics
- Weight:
- 1140 g (2.52 lb)
- Housing:
- Metal
- Dimensions:
- 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
- Installation:
- DIN-rail mounting, Wall mounting (with optional kit)
- Operation Humidity:
- 5 to 95% (non-condensing)
- Storage Temperature:
- -40 to 85°C (-40 to 185°F)
- Operating Temperature:
- -40 to 75°C (-40 to 167°F)
- Standards and Certifications:
- Safety: EN 62368-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: DNV; IP30; MIL-HDBK-217F
