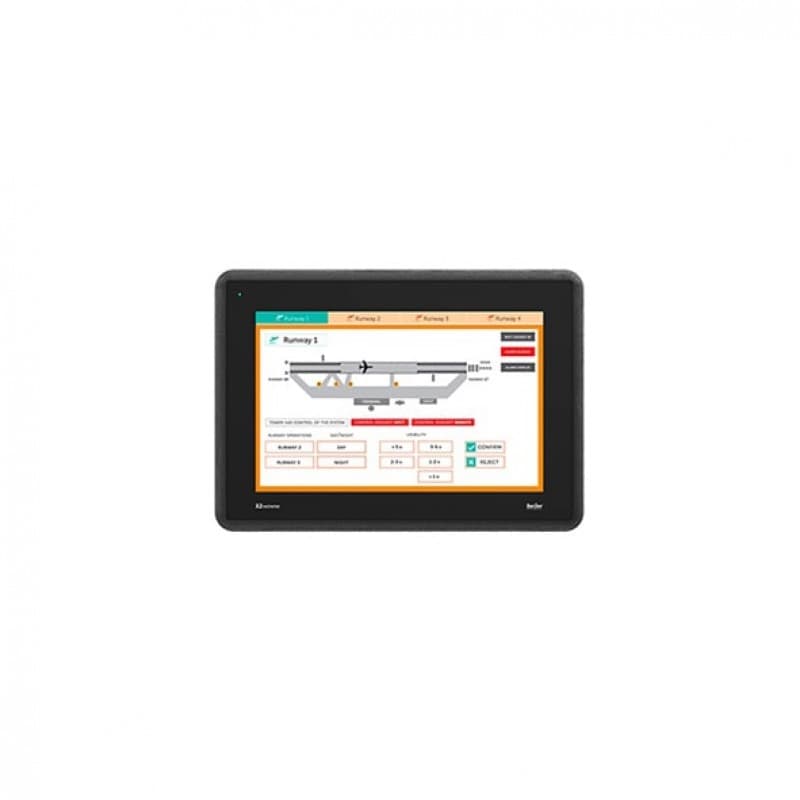

Beijer X2 extreme 12 HP SC Rugged HMI
1280 × 800 pixels (16:10) TFT-LCD touchscreen High brightness display CODESYS control integrated Ethernet 2x100 Mbit -30°C to +70°C operating temperature DNV, KR, GL, LR, ABS, CCS, and BV marine approvals UL Class I Div 2, ATEX/IECEx Zone 2,22
Tags & Features
X2 extreme panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors, and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations, and high-pressure wash-downs. X2 extreme panels are available in 7, 12, and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions feature a high-brightness display and optional integrated CODESYS PLC functionality.
Specifications
System
- CPU:
- i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache
- RAM:
- 2 GB
- FLASH:
- 4GB SSD(eMMC), 3.5GB free for application
Display
- Backlight:
- LED Backlight
- Resolution:
- 1280x800 pixels
- Display type:
- TFT-LCD with LED backlight
- Size diagonal:
- 12.1" diagonal
- Backlight dimming:
- Marine optimized dimming, down to 0,5 cd/m2
- Backlight life time:
- 100000 hours
- Backlight brightness:
- 1000 cd/m2
Softcontrol
- Codesys runtime version:
- 3.5
Power Requirements
- Input fuse:
- Internal DC fuse
- Input voltage:
- 24 V DC (18 to 32 VDC)CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform to the requirements for class II power supplies.
- Power consumption (max):
- 27 W
Expansion interface
- USB:
- 2xUSB 2.0 500mA
- SD card:
- SD and SDHC
Communication serial
- Serial port 1:
- RS 232 (RTS/CTS)
- Serial port 2:
- RS422 (RTS)/RS485
- Serial port 3:
- RS 485
- Number of serial ports:
- 2 Port 9pin DSUB
Ethernet communication
- Ethernet port 1:
- 1x10/100 Base-T (shielded RJ45)
- Ethernet port 2:
- 1x10/100 Base-T (shielded RJ45)
- Number of ethernet ports:
- 1
Physical Characteristics
- Shock:
- 40g, half-sine, 11ms according to IEC60068-2-27
- Marine:
- DNV, KR, GL, LR, ABS, CCS, BV
- Weight:
- 2.8 kg
- Housing:
- Powder-coated aluminum, Black
- Humidity:
- 5% – 95% non-condensed
- Mounting:
- Panel Mount
- Hazardous:
- ULC1D2, ATEX (Zone2), ATEX (Zone22), IEXEx (Zone2), IEXEx (Zone22)
- Vibration:
- 4g, according to IEC 60068-2-6, Test Fc
- Touch type:
- Resistive
- Cut-out size:
- 324 x 226mm
- Sealing back:
- IP20
- Sealing front:
- IP66, NEMA 4X/ 12 and UL Type 4X/ 12
- Mechanical size:
- 340 x 242 x 69mm
- Number of touches:
- 1million finger touch operations
- Storage temperature:
- -40°C to +80°C
- Operating temperature:
- -30°C to +70°C
- Standards and Certifications:
- CE, FCC, KCC, UL 61010-2-201
