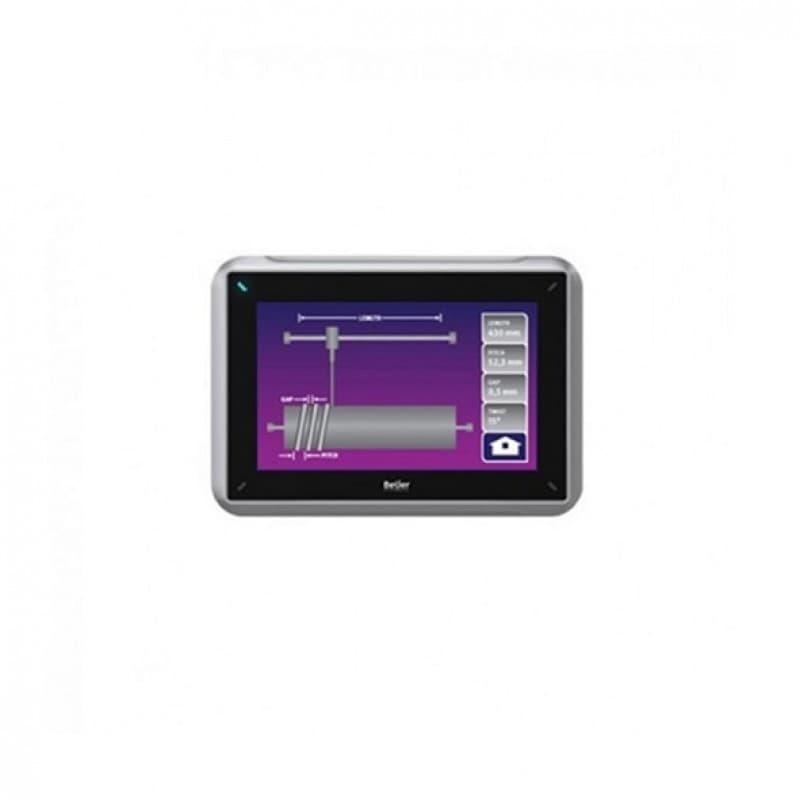

Beijer iX T7B-SM graphic touch marine HMI
BEIJERHMI & Industrial DisplaysiX T7B-SM
7.0" TFT-LCD touchscreen 800 × 480 (16:9)
Tags & Features
Factory AutomationPower UtilityRailway TransportationRoad TransportationWater & WastewaterOperating Temperature (-10 to 50°C)Relative Humidity (<85 % non-condensed)Shock (10G 11ms half sine)Vibration (07G RMS)
iX TxX operator panels ranging from 21-inch industrial PCs to ultra-compact 4-inch panels; all models have high-performance CPUs and the latest screen technology.
Specifications
Display
- Backlight:
- LED backlight
- Resolution:
- 800 x 480 pixels
- Display type:
- TFT LCD
- Size diagonal:
- 7.0 inch
- Backlight dimming:
- Industrial
- Backlight life time:
- 50,000 hrs
- Backlight brightness:
- 500 cd/m2
Power Requirements
- Input fuse:
- Internal DC fuse, 3.15A slow
- Input voltage:
- +24 VDC (18 - 32 VDC)
- Power consumption (max):
- 14 W
Communication serial
- Serial port 1:
- RS 232 (RTS/CTS)
- Serial port 2:
- RS 485
- Serial port 3:
- RS 232
- Number of serial ports:
- 2 Port combined 9pin DSUB with dual pinout
Ethernet communication
- Ethernet port 1:
- 1x10/100 Base-T (shielded RJ45)
- Ethernet port 2:
- EtherCAT in CODESYS
- Number of ethernet ports:
- 2
Physical Characteristics
- Shock:
- 10G 11ms half sine
- Weight:
- 0.9 kg
- Housing:
- Powder-coated aluminum
- Humidity:
- <85 % non-condensed
- Vibration:
- 0,7G RMS
- Touch type:
- Resistive type
- Sealing back:
- IP20
- Sealing front:
- IP65
- Mechanical size:
- 204 x 143 x 52.2 mm
- Storage temperature:
- -20 to + 70 °C
- Operating temperature:
- -10 to + 50 °C
